SabreGuard^® and SabreLine^® Holmium Laser Fibers

SabreGuard^® holmium laser fibers are single-use, specialty fibers designed to reduce cost and promote clear procedural visibility. The round fiber tip on the SabreGuard^® fiber allows it to pass through a 270 degree deflected scope without causing damage to the inner lining or the need to straighten the scope saving costly scope repairs and procedure time. The small outer diameter of the fiber allows for more irrigation in the surgical field which improves visibility.

All fibers are tested for power output before making their way into cases to ensure the Coloplast standard of quality you expect.

Rounded Fiber Tip

• Passes through  working channel of fully deflected (270 degree) scope without damage to the inner lining
• Unlike other fibers on the market, the unique round tip design prevents energy concentration loss at fiber tip
• Round tip fibers require less force to insert through ureteroscope compared to straight tip fibers¹

---

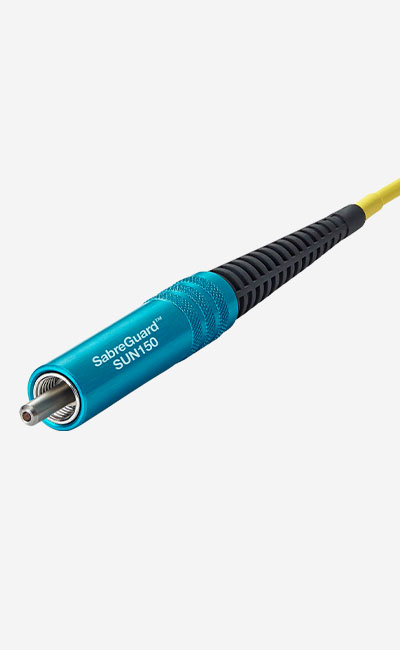

Connector Design

• Compatible with any cleared surgical laser with an SMA-905 connector
• Directs energy to the silica core for high and efficient energy output
• Built-in blast shield designed to mitigate the potential for errant energy that may damage the fiber or laser

---

Cost Savings

• Round tip saves costly OR time by eliminating the need to straighten deflected endoscope while fiber is being passed through working channel
• Round tip fibers have shown to reduce scope repairs compared to blunt tip fiber²
• Data has shown overall cost savings of $81.27 per case when a round tip fiber is used²

---

References:

1. Carlos, Evan C., et al. “Let’s Get to the Point: Comparing Insertion Characteristics and Scope Damage of Flat-Tip and Ball-Tip Holmium Laser Fibers.” Journal of Endourology, vol. 33, no. 1, Jan. 2019, pp. 22–26., doi:10.1089/end.2018.0229.
2. Guise, A., et al. The impact on cost and frequency of ureteroscope repairs using a ball-tipped laser fiber for ureteroscopy, Journal of Urology, Volume 191, e948, April 2014.

SabreLine^® holmium laser fibers are purposefully designed to deliver laser energy to hard and soft tissue during surgical laser procedures. Popular 200, 272, and 365 single-use fibers are constructed with a fiber tip featuring curved edges to decrease scope damage. 200, 272, and 365 sized fibers also feature a small outer diameter to promote greater deflection, irrigation, and procedural visibility. Large 550-micron and 940-micron fibers are high powered options at 200W of maximum energy. SabreLine^® fibers are compatible with any cleared surgical laser with a SMA-905 connector.

All fibers are tested for power output before making their way into cases to ensure the Coloplast standard of quality.

Tip Talk

• Unique radius tip found on popular single-use 200, 272, and 365 options protect against scope damage during everyday use
• Standard straight fiber tip featured on large 550 and 940 single-use fiber sizes and all reusable sizes
• All fiber tips are precision processed and polished to remove sharp edges and reduce imperfections

---

Plug it In

• All fibers are compatible with any cleared surgical laser with SMA-905 connection
• Single-use fibers feature a built-in blast shield designed to mitigate errant energy damage to the fiber or laser generator

---

Power, Visualization, and Deflection

• Coloplast 550 and 940 offer high-power output at 200W
• SabreLine® 200, 272, and 365 fibers are designed to have a small outer diameter that promotes greater deflection, irrigation, and procedural visibility

SabreGuard® Holmium Laser Fibers
Item	Core Size (μm)	Tip	Sales UOM	EA / Sales UOM
SUN150	150	Round	Box	3 EA
SUN200	200	Round	Box	3 EA



SabreLine® Holmium Laser Fibers
Item	Core Size (μm)	Tip	Sales UOM	EA / Sales UOM
SUE200	200	Radius	Box	3 EA
SUE272	272	Radius	Box	3 EA
SUE365	365	Radius	Box	3 EA
SUD550	550	Straight	Box	3 EA
SUD940	940	Straight	Box	3 EA



SabreLine® Reusable Holmium Laser Fiber
Item	Core Size (μm)	Tip	Sales UOM	EA / Sales UOM
RUS272	272	Straight	Each	1 EA
RUS365	365	Straight	Each	1 EA
RUS550	550	Straight	Each	1 EA
RUS940	940	Straight	Each	1 EA



Laser Fiber Accessories
Item	Description	Size	Sales UOM	EA / Sales UOM
STR150	150 Series Laser Fiber Stripper	150	Each	1 EA
STR200	200 Series Laser Fiber Stripper	200	Each	1 EA
STR272	272 Series Laser Fiber Stripper	272	Each	1 EA
STR365	365 Series Laser Fiber Stripper	365	Each	1 EA
STR550	550 Series Laser Fiber Stripper	550	Each	1 EA
STR940	940 Series Laser Fiber Stripper	940	Each	1 EA
CLPENS	Laser Fiber Cleaving Pen	–	Each	1 EA
CLTOOL	Laser Fiber Cleaving Tool	–	Box	5 EA

Indications
The Coloplast SabreGuard and SabreLine Laser Fibers are indicated for use in all surgical specialties in which compatible laser systems with operational wavelengths between 500 nm – 2200 nm have received regulatory clearance.

The laser delivery devices are intended for use with any cleared surgical laser with a SMA-905 connector.

Contraindications
The laser fibers are contraindicated for treatment of patients for whom endoscopic procedures are contraindicated. Refer to the laser User Manual for contraindications related to the laser system.

Warnings and Precautions
Before attempting to use the laser fiber, the physician should fully understand the use of the laser, safety considerations, tissue interaction, and proper technique specific to the treatment for which the physician intends to use this product.

Single-use fibers are not to be reused. Reuse may compromise device integrity and lead to malfunction or failure which may result in patient or user injury.

The information provided is not comprehensive with regard to product risks. For a comprehensive listing of indications, contraindications, warnings, precautions, and adverse events refer to the product’s Instructions for Use. Alternatively, you may contact a Coloplast representative at 1-800-258-3476 and/or visit the company website at www.coloplast.com.

Caution: Federal law (USA) restricts this device to sale by or on the order of a physician.
